09563525612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

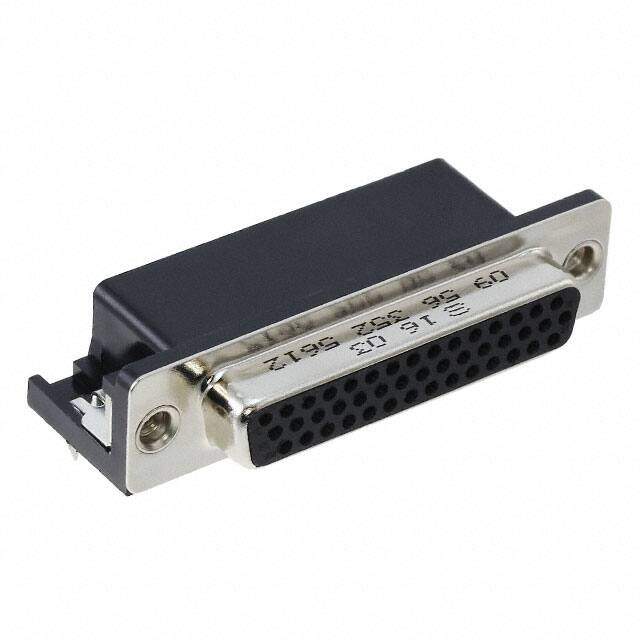

Conn High Density D-Sub F 44 POS 2.29mm Solder RA Thru-Hole 44 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $12.34
Unit Price: USD $12.3376
≥1 USD $12.3376
≥10 USD $10.9384
≥100 USD $10.517408
≥500 USD $10.096768
≥1000 USD $9.535856
≥3000 USD $8.694462
Inventory: 119
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 53.5mm
Technical
Test Voltage 1kV
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 3 DB B High Density
Contact Form Stamped
Mating Contact Row Spacing 0.078 inch
PCB Contact Row Spacing 2.54 mm
Number of Ports 1
Connector Style D-Sub, High Density
Plating Tin
Mating Contact Pitch 0.09 inch
Flange Feature Housing/Shell (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 25mOhm
Rated Current (Signal) 2A
Body Depth 0.646 inch
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.509 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Current Rating 2A
Terminal Pitch 2.286mm
Orientation Right Angle
Total Number of Contacts 44
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 3
Number of Positions 44
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
