09563517512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

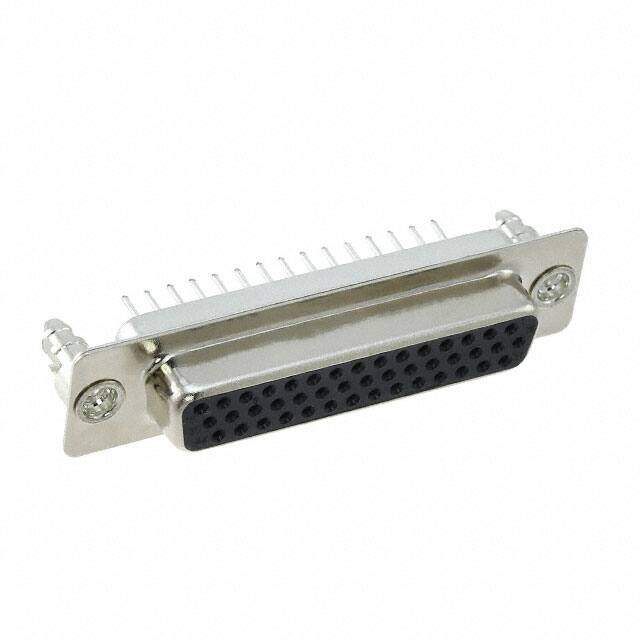

D-Sub High Density Connectors 44P FEMALE STRT PCB 4-40 UNC PL3 PLATING
PDF
/
Buying Options
Total Price: USD $7.78
Unit Price: USD $7.776936
≥1 USD $7.776936
≥10 USD $7.336734
≥100 USD $6.921446
≥500 USD $6.52967
≥1000 USD $6.160057
Inventory: 8950
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 11mm
Length 53.5mm
Technical
Shell Size, Connector Layout 3 DB B High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Board Side (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 2A
Depth 12.93mm
Orientation Straight
Total Number of Contacts 44
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 3
Number of Positions 44
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
