09563515513

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

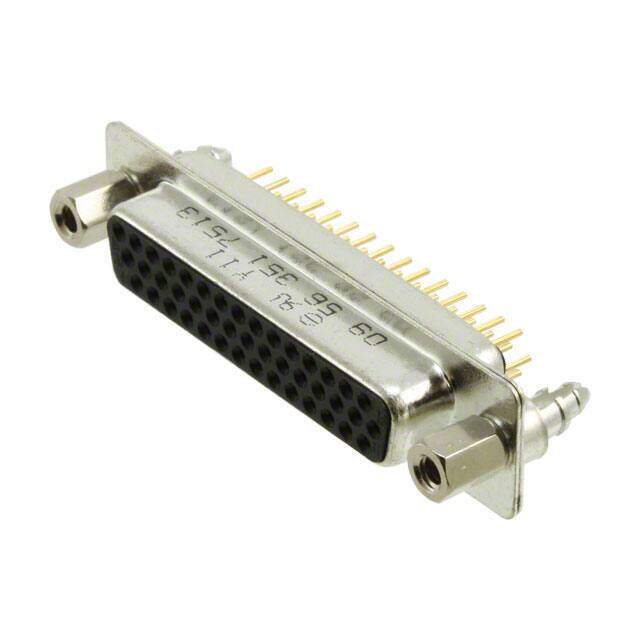

Description D-Sub High Density Connectors 44P DSUB FEMALE HD STRAIGHT SOLDER PIN
PDF
/
Buying Options
Total Price: USD $13.15
Unit Price: USD $13.1472
≥1 USD $13.1472
≥10 USD $11.65208
≥100 USD $11.20416
≥500 USD $10.158456
≥1000 USD $9.262088
≥3000 USD $8.664533
Inventory: 282
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Nickel Plated

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 44
Number of Rows 3
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 44
Orientation Straight
Depth 12.93mm
Current Rating 2A
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 3 DB B High Density
Test Voltage 1kV

Dimensions

Length 53.5mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
