09563004704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

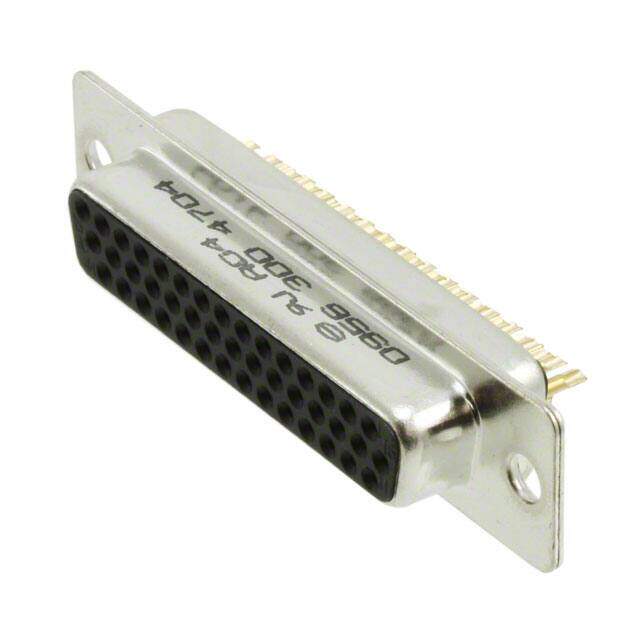

D-Sub High Density Connectors 44P HIGH DENS SOLDER FEMALE THRU-HOLE
PDF
/
Buying Options
Total Price: USD $6.89
Unit Price: USD $6.8904
≥1 USD $6.8904
≥10 USD $6.22952
≥100 USD $5.885088
≥500 USD $5.454592
≥1000 USD $4.880392
≥3000 USD $4.593318
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 44
Color Black
Number of Rows 3
Gender Receptacle
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 44
Orientation Straight
Current Rating 2A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, High Density
Contact Form Stamped
Shell Size, Connector Layout 3 DB B High Density
Dimensions
Length 53.09mm
Width 12.55mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
