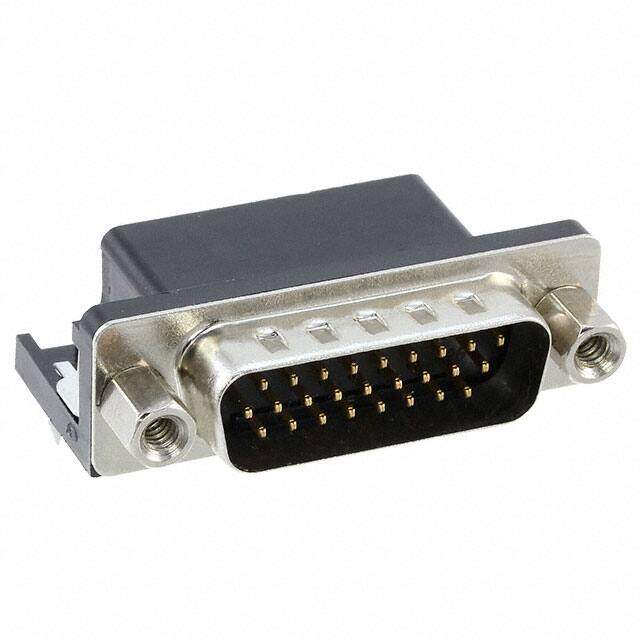

HARTING 09 56 262 5813 D SUB CONNECTOR, STANDARD, 26 POSITION, PLUG
PDF
/
Buying Options
Total Price: USD $9.08
Unit Price: USD $9.0816
≥1 USD $9.0816
≥10 USD $8.17432
≥100 USD $7.700704
≥500 USD $7.305936
≥1000 USD $6.51611
≥3000 USD $6.121192
Inventory: 156
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 39.5mm
Height 12.55mm
Technical
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 2 DA A High Density
Contact Form Stamped
Mating Contact Row Spacing 0.078 inch
PCB Contact Row Spacing 2.54 mm
Number of Ports 1
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 25mOhm
Rated Current (Signal) 2A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Current Rating 2A
Depth 22.3mm
Orientation Right Angle
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
Gender Male
Number of Rows 3
Number of Positions 26
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
