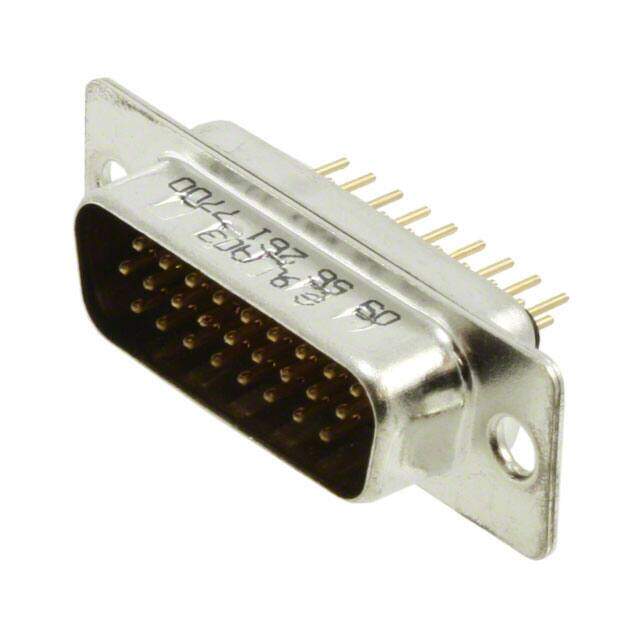

09562617700

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description Conn High Density D-Sub PIN 26 POS 2.29mm Solder ST Thru-Hole 26 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $4.59
Unit Price: USD $4.594246
≥1 USD $4.594246
≥10 USD $4.33419
≥100 USD $4.088856
≥500 USD $3.857422
≥1000 USD $3.639069
Inventory: 7986
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 10.74mm
Length 39.5mm

Technical

Shell Size, Connector Layout 2 DA A High Density
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 2A
Depth 12.93mm
Orientation Straight
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 3
Color Black
Number of Positions 26
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
