09562615713
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

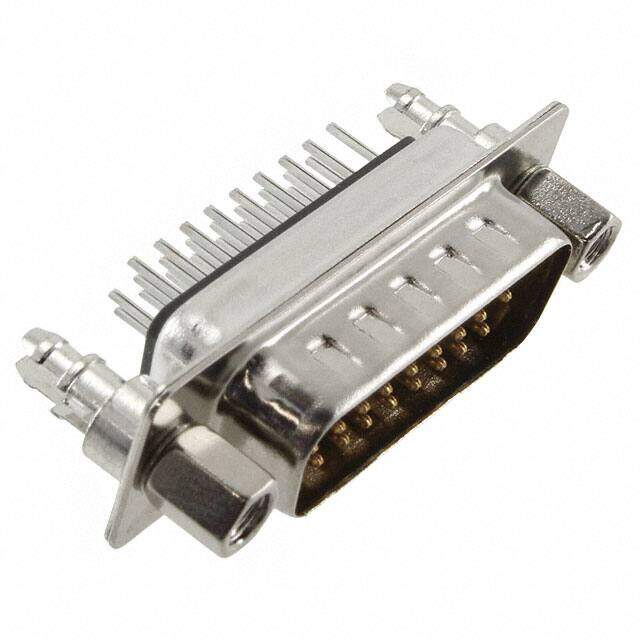

D-Sub high-density plug 26P, 09 56 261 5713
PDF
/
Buying Options
Total Price: USD $5.88
Unit Price: USD $5.878815
≥1 USD $5.878815
≥10 USD $5.546052
≥100 USD $5.232129
≥500 USD $4.935963
≥1000 USD $4.656575
Inventory: 4129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Height 12.55mm
Technical
Test Voltage 1kV
Shell Size, Connector Layout 2 DA A High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender Male
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 3
Number of Positions 26
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Tin
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
Recommended For You
