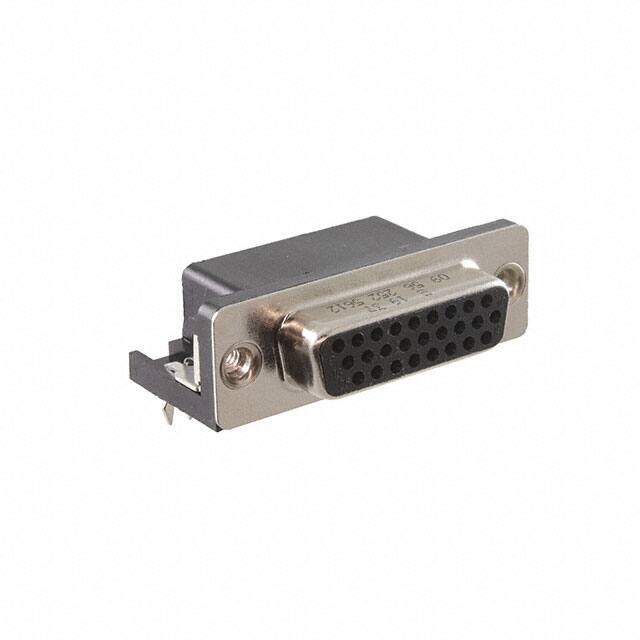

09562525612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Connectors 26P FEMALE R/A PCB 4-40 UNC S4 PLATING
PDF
/
Buying Options
Total Price: USD $7.25
Unit Price: USD $7.2512
≥1 USD $7.2512
≥10 USD $6.55776
≥100 USD $6.194848
≥500 USD $6.04384
≥1000 USD $5.741648
≥3000 USD $5.137264
Inventory: 664
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Through Hole, Right Angle
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 3
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 26
Terminal Pitch 2.286mm
Current Rating 2A
Reference Standard UL
Contact Finish Gold or Gold-Palladium
Reliability COMMERCIAL
Body Length or Diameter 1.555 inch
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Body Breadth 0.509 inch
Contact Gender Female
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.646 inch
Rated Current (Signal) 2A
Contact Resistance 25mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.09 inch
Plating Tin
Connector Style D-Sub, High Density
PCB Contact Row Spacing 2.54 mm
Mating Contact Row Spacing 0.078 inch
Contact Form Stamped
Shell Size, Connector Layout 2 DA A High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length - Termination 0.14 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
