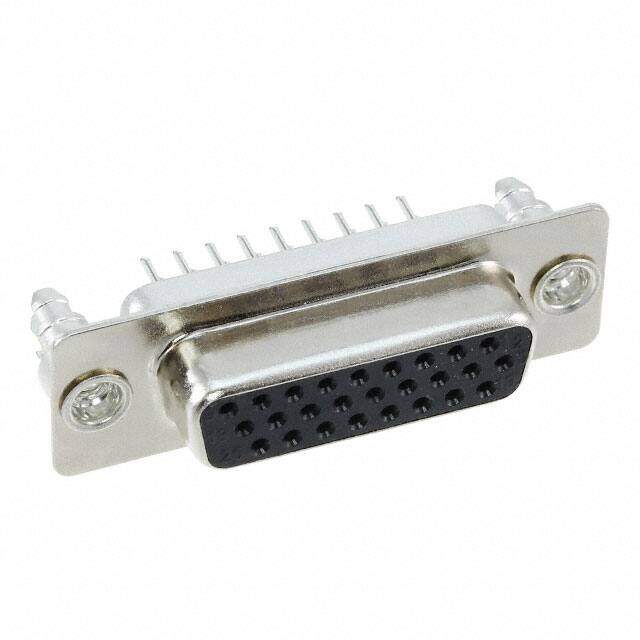

09562517512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn High Density D-Sub SKT 26 POS 2.29mm Solder ST Thru-Hole 26 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $6.82
Unit Price: USD $6.82
≥1 USD $6.82
≥10 USD $6.16968
≥100 USD $5.828064
≥500 USD $5.686032
≥1000 USD $5.401704
≥3000 USD $4.833136
Inventory: 314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 3
Gender Receptacle
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 26
Orientation Straight
Depth 12.93mm
Current Rating 2A
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Board Side (4-40)
Plating Tin
Connector Style D-Sub, High Density
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 2 DA A High Density
Dimensions
Length 39.5mm
Width 11mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
