09562517500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

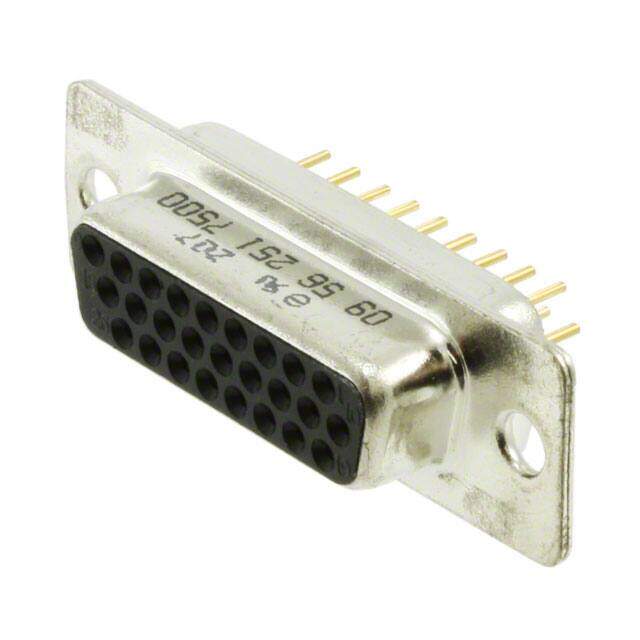

CONN DSUB HD RCPT 26POS VERT SLD
PDF
/
Inventory: 6124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 10.74mm
Length 39.5mm
Height 12.55mm
Technical
Shell Size, Connector Layout 2 DA A High Density
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 2A
Depth 12.93mm
Orientation Straight
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 3
Color Black
Number of Positions 26
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
