09562005604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

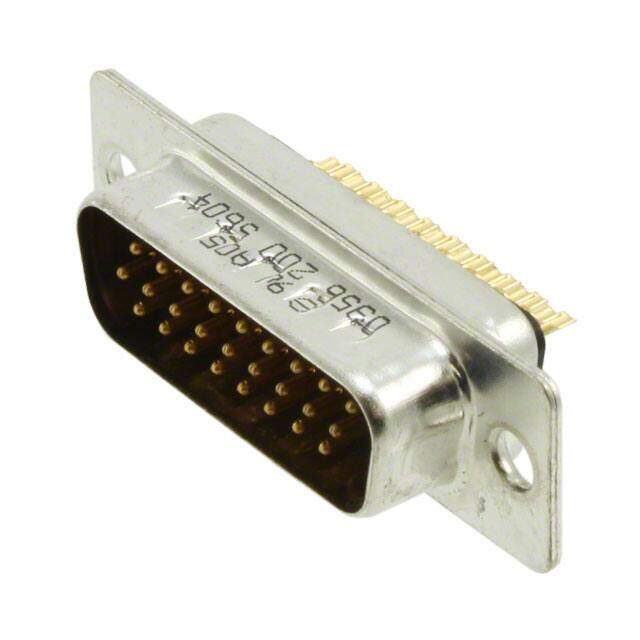

D-Sub High Density Connectors D SUB HD MA 26P PL3 SOLDER CUP
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.784
≥1 USD $3.784
≥10 USD $3.4364
≥100 USD $3.25424
≥500 USD $3.027376
≥1000 USD $2.64895
≥3000 USD $2.573261
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 26
Color Black
Number of Rows 3
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 26
Orientation Straight
Current Rating 2A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, High Density
Contact Form Stamped
Shell Size, Connector Layout 2 DA A High Density
Dimensions
Height 12.55mm
Length 39.1mm
Width 12.55mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
