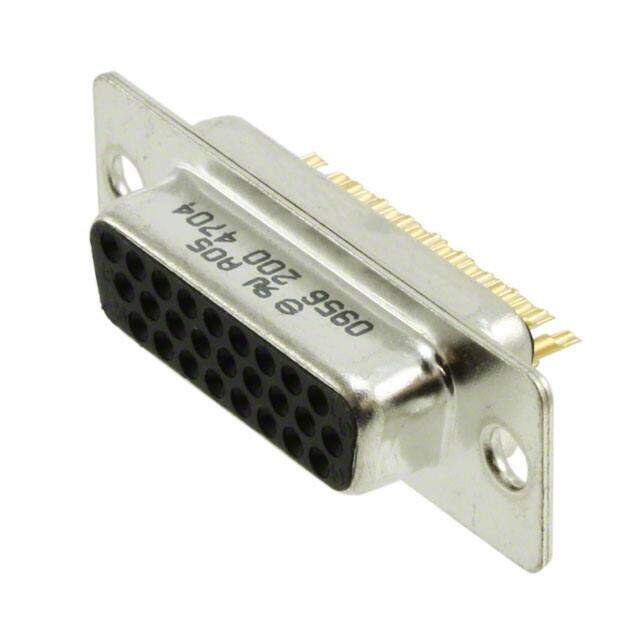

09562004704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Connectors D SUB HD FE 26P PL3 SOLDER CUP
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.094726
≥1 USD $4.094726
≥10 USD $3.862958
≥100 USD $3.644298
≥500 USD $3.438013
≥1000 USD $3.243407
Inventory: 8652
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.55mm
Length 39.1mm
Technical
Shell Size, Connector Layout 2 DA A High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 2A
Orientation Straight
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 3
Color Black
Number of Positions 26
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
