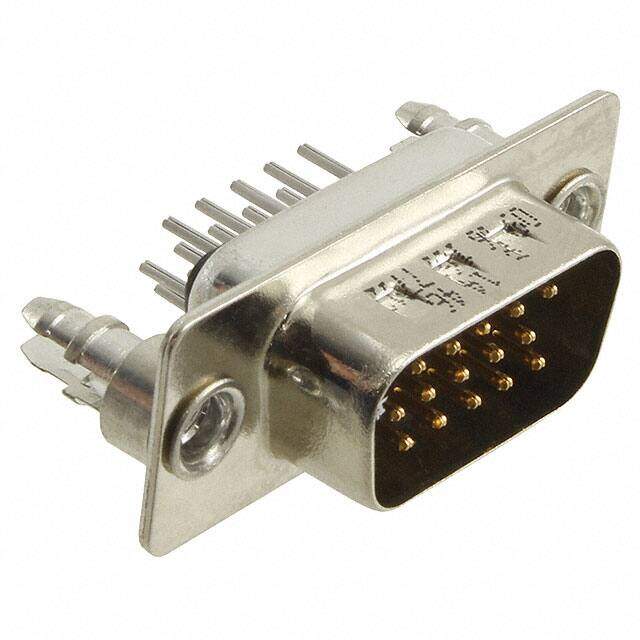

09561617712

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description Conn High Density D-Sub PIN 15 POS 2.29mm Solder ST Thru-Hole 15 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.3968
≥1 USD $3.3968
≥10 USD $3.08704
≥100 USD $2.92336
≥500 USD $2.719552
≥1000 USD $2.379608
≥3000 USD $2.311619
Inventory: 98
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Steel
Shell Material, Finish Steel, Nickel Plated

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 3
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 15
Orientation Straight
Depth 12.93mm
Current Rating 2A
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Board Side (4-40)
Plating Tin
Connector Style D-Sub, High Density
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E High Density

Dimensions

Length 31.3mm
Width 10.74mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
