09561527613
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

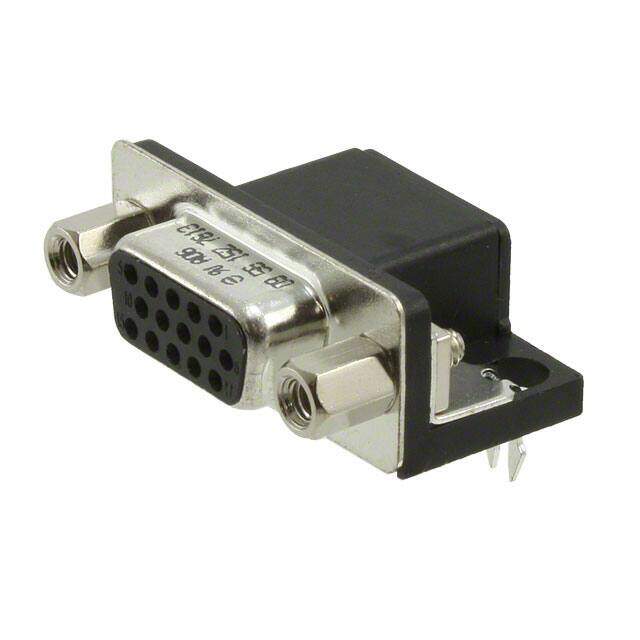

15 Way Right Angle Through Hole Mount PCB D-sub Connector Socket; 2.29mm Pitch
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.1536
≥1 USD $4.1536
≥10 USD $3.77256
≥100 USD $3.573504
≥500 USD $3.490256
≥1000 USD $3.324112
≥3000 USD $2.908602
Inventory: 205
Minimum: 1
-
+
Technical Details
Technical
Mating Contact Row Spacing 0.078 inch
PCB Contact Row Spacing 2.54 mm
Number of Ports 1
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 25mOhm
Rated Current (Signal) 2A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reliability COMMERCIAL
Reference Standard UL
Current Rating 2A
Depth 21.4mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 3
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -40°C~85°C
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 1 DE E High Density
Contact Form Stamped
Physical
Shell Material, Finish Steel, Nickel Plated
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.93mm
Length 31.3mm
Height 12.55mm
