09561517513
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

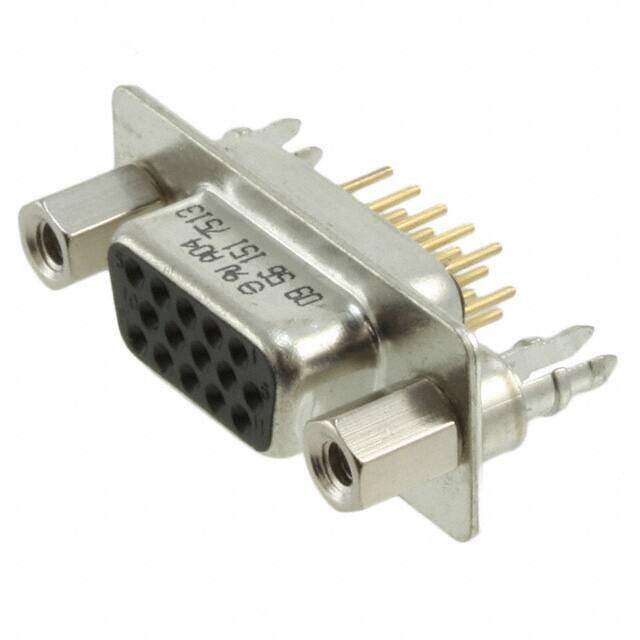

D-Sub High Density Connectors D SUB HD FE STR 15P PL3_4-40 NUT
PDF
/
Buying Options
Total Price: USD $4.58
Unit Price: USD $4.576
≥1 USD $4.576
≥10 USD $4.15096
≥100 USD $3.93184
≥500 USD $3.657456
≥1000 USD $3.200234
≥3000 USD $3.108794
Inventory: 924
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Package / Case Metal
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 3
Gender Receptacle
Additional Feature ROHS COMPLIANT
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 15
Orientation Straight
Depth 12.93mm
Current Rating 2A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.509 inch
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Body/Shell Style PLUG
Connector Style D-Sub, High Density
Number of Ports 1
Mating Contact Row Spacing 0.078 inch
Contact Form Stamped
Shell Size, Connector Layout 1 DE E High Density
Dimensions
Length 31.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
