09561515513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

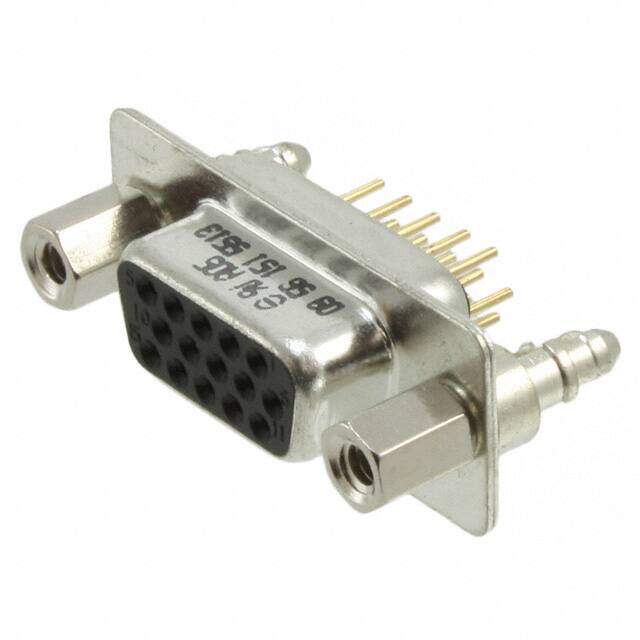

D-Sub High Density Connectors D SUB HD FE STR 15P S4_4-40 NUT
PDF
/
Buying Options
Total Price: USD $5.31
Unit Price: USD $5.314522
≥1 USD $5.314522
≥10 USD $5.013703
≥100 USD $4.729906
≥500 USD $4.462176
≥1000 USD $4.2096
Inventory: 5506
Minimum: 1
-
+
Technical Details
Technical
Total Number of Contacts 15
Orientation Straight
Depth 12.93mm
Current Rating 2A
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 1 DE E High Density
Test Voltage 1kV
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Number of Rows 3
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Length 31.3mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
