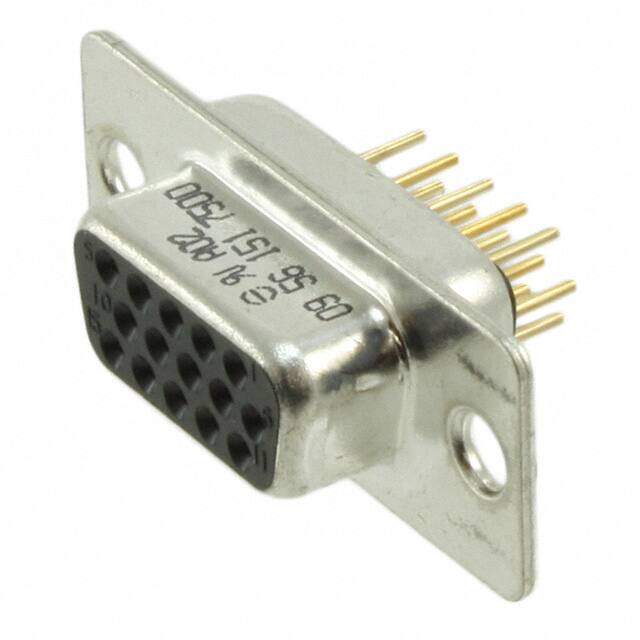

09561515500 image
Favorite
09561515500 image
Favorite

09561515500

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub High Density Connectors 15P FEMALE STRT PCB THRU HOLE S4 PLATING
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.268
≥1 USD $4.268
≥10 USD $3.87376
≥100 USD $3.668896
≥500 USD $3.583712
≥1000 USD $3.412992
≥3000 USD $2.986368
Inventory: 47
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Technical

Shell Size, Connector Layout 1 DE E High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender Female
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Number of Rows 3
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Tin
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
