09561005615050
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Connectors, Interconnects / D-Sub Connectors
Description

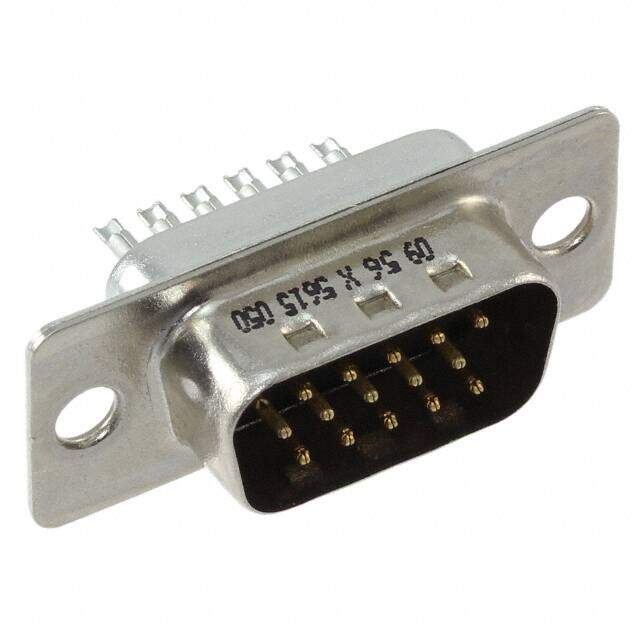

D-Sub high density plug 15P, 09 56 100 5615 050, Harting
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.5552
≥1 USD $3.5552
≥10 USD $3.22784
≥100 USD $3.057472
≥500 USD $2.986368
≥1000 USD $2.84416
≥3000 USD $2.48864
Inventory: 228
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 100
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 15
Color Black
Number of Rows 3
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 15
Orientation Straight
Current Rating 2A
Number of Conductors ONE
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.494 inch
Contact Gender Male
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.181 inch
Wire Gauge 24 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, High Density
Mating Contact Row Spacing 0.078 inch
Contact Form Stamped
Shell Size, Connector Layout 1 DE E High Density
Dimensions
Length 30.89mm
Width 12.55mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
