09553296812741

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

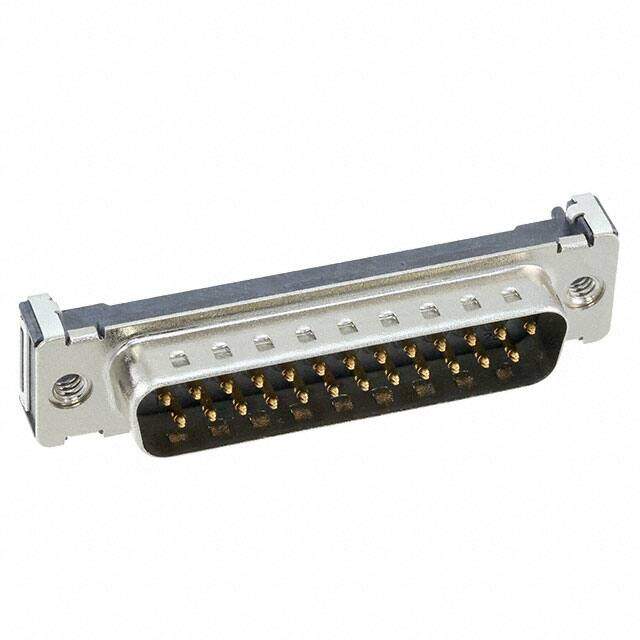

Description HARTING 09 55 329 6812 741Standard D Sub Connector, D Sub Series, DB, Plug, 25 Contacts, Steel Body, Surface Mount
PDF
/
Buying Options
Total Price: USD $4.54
Unit Price: USD $4.5408
≥1 USD $4.5408
≥10 USD $4.10608
≥100 USD $3.878688
≥500 USD $3.784176
Inventory: 1362
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 12.5mm
Length 53.34mm

Technical

Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Current Rating 5A
Depth 12.55mm
Orientation Straight
Pitch 2.76mm
Contact Type Signal
Gender Male
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Nickel Plated
Body Material Steel
Housing Material Polymer
Dielectric Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 9 Weeks
