09552156612741
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

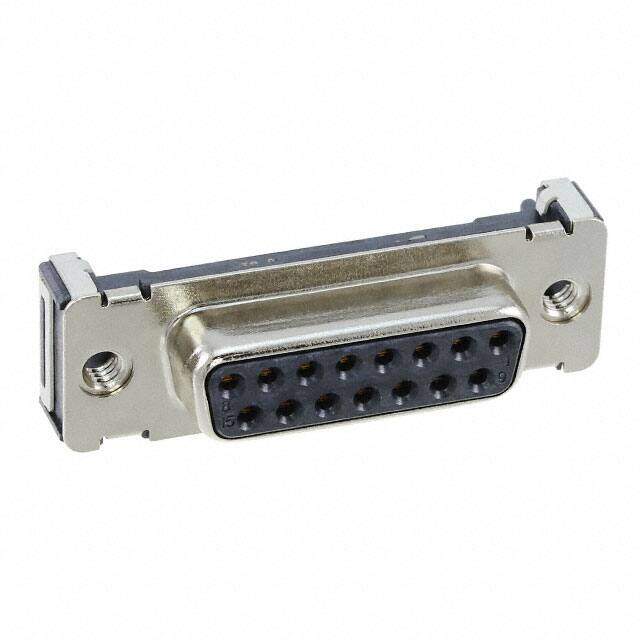

HARTING 09 55 215 6612 741 D Sub Connector, D Sub Series, DA, Receptacle, 15, Steel, Surface Mount
PDF
/
Buying Options
Total Price: USD $5.51
Unit Price: USD $5.5088
≥1 USD $5.5088
≥10 USD $4.99928
≥100 USD $4.735104
≥500 USD $4.624928
Inventory: 1477
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 2
Gender Receptacle
Contact Type Signal
Pitch 2.74mm
Orientation Straight
Depth 12.25mm
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Dimensions
Length 39.45mm
Width 12.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
