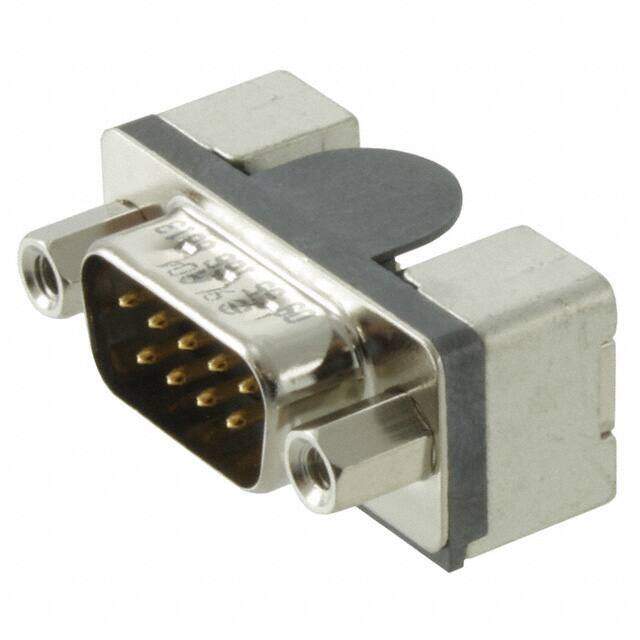

09551666813741
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
PLUG, D, SMT, SCREWLOCK, 9WAY
PDF
/
Inventory: 9097
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Material Steel
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Body Material Metal
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Feature Board Guide, Grounding Indents
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Color Black
Number of Rows 2
Gender Male
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Right Angle
Depth 18mm
Reach Compliance Code unknown
Current Rating 5A
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Working Voltage 250V
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Body Plating Nickel
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31.09mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
