09551296812741
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

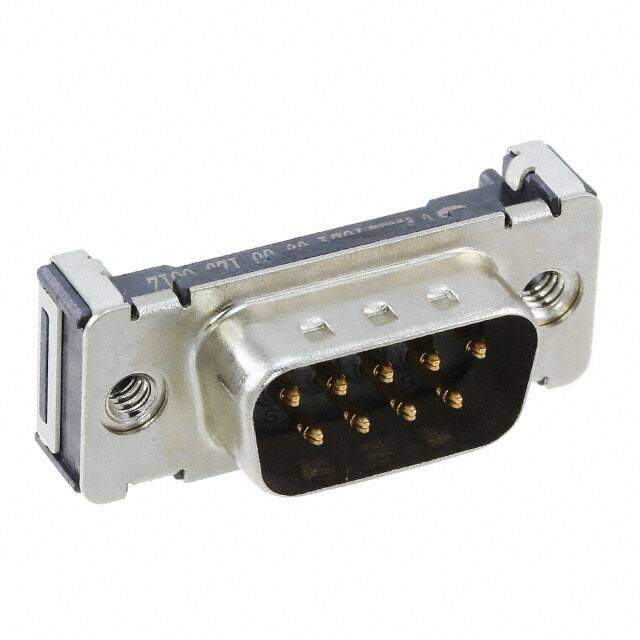

HARTING 09 55 129 6812 741Standard D Sub Connector, D Sub Series, DE, Plug, 9 Contacts, Steel Body, Surface Mount
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.2624
≥1 USD $5.2624
≥10 USD $4.77752
≥100 USD $4.52496
≥500 USD $4.419712
Inventory: 549
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Dielectric Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Body Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Color Black
Number of Rows 2
Gender Male
Contact Type Signal
Pitch 2.74mm
Orientation Straight
Depth 12.25mm
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Dimensions
Length 31.12mm
Width 12.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
