09551156612741
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

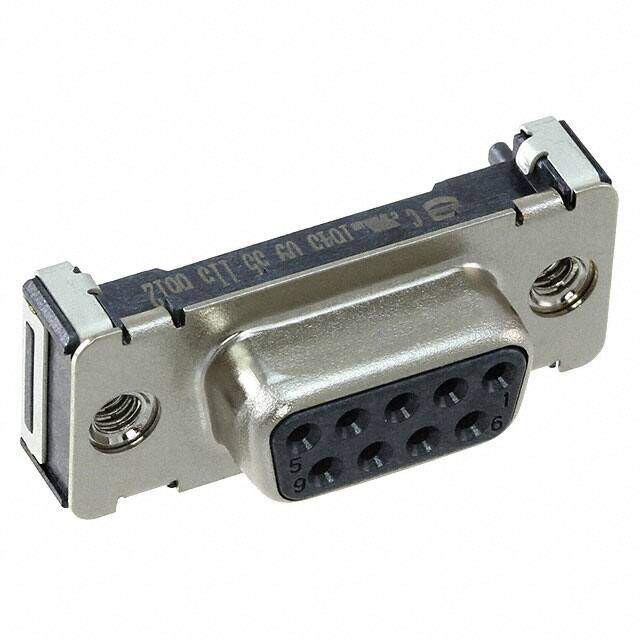

HARTING 09 55 115 6612 741Standard D Sub Connector, D Sub Series, DE, Receptacle, 9 Contacts, Steel Body, Surface Mount
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7344
≥1 USD $4.7344
≥10 USD $4.29792
≥100 USD $4.070528
≥500 USD $3.975664
Inventory: 1106
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 12.5mm
Length 31.12mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Current Rating 5A
Depth 12.25mm
Orientation Straight
Pitch 2.74mm
Contact Type Signal
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Nickel Plated
Body Material Steel
Housing Material Polymer
Dielectric Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 11 Weeks
