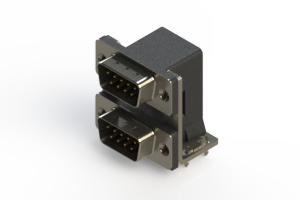

661-009-264-035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 9POS R/A SLDR
PDF
/
Inventory: 3100
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Number of Pins 9
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series 661
Feature Board Lock, Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9, 9
Color Black
Number of Rows 2, 2
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub - Stacked
Shell Size, Connector Layout 1 DE E ; 1 DE E
Backset Spacing 0.318 (8.08mm)
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
