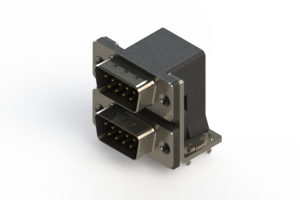

661-009-264-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 9POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.71536
≥100 USD $3.61768
≥500 USD $3.421827
≥1000 USD $3.22637
≥3000 USD $3.030817
Inventory: 154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Technical
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 1 DE E ; 1 DE E
Connector Style D-Sub - Stacked
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2, 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 9, 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
Series 661
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Number of Pins 9
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
