638-062-230-042

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

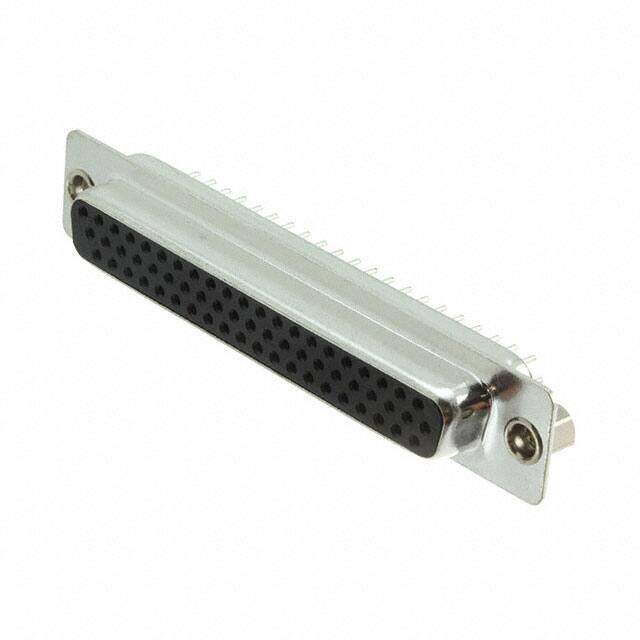

Description 638 Series 62 Position Straight Socket Board Mount D-Sub
PDF
/
Inventory: 3019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Material Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated

Technical

Operating Temperature -55°C~125°C
Packaging Tray
Published 2012
Series 638
JESD-609 Code e3
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 62
Color Black
Number of Rows 3
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 62
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 4 DC C High Density

Dimensions

Height 13.1mm
Length 69.3mm
Width 12.6mm
Contact Finish Thickness Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
