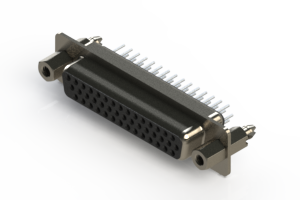

638-044-630-047
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB HD RCPT 44POS PNL MNT
PDF
/
Inventory: 3495
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2005
Series 638
JESD-609 Code e3
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 44
Color Black
Number of Rows 3
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 44
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 3 DB B High Density
Dimensions
Height 13.1mm
Length 53mm
Width 12.6mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
