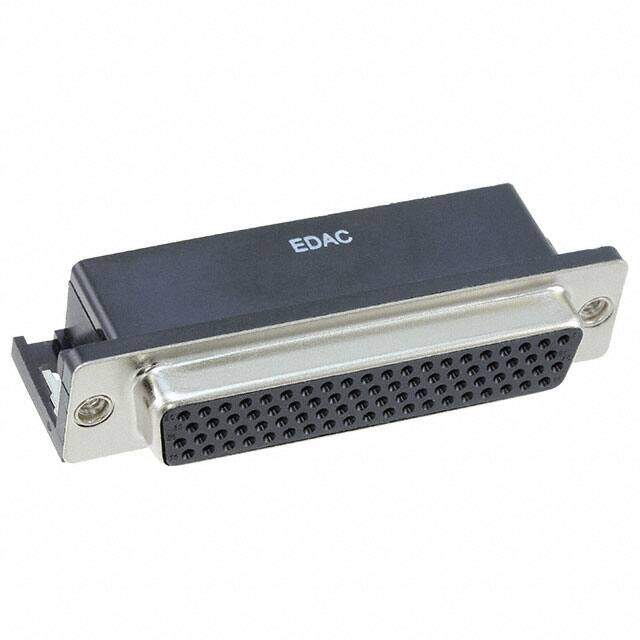

634-078-263-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Connectors 78P RECPT RA .350 FP
PDF
/
Buying Options
Total Price: USD $31.88
Unit Price: USD $31.881757
≥1 USD $31.881757
≥10 USD $30.077133
≥100 USD $28.374652
≥500 USD $26.768536
≥1000 USD $25.253339
Inventory: 5078
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2011
Series 634
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 78
Color Black
Number of Rows 4
Contact Type Signal
Current Rating (Amps) 3A
Current Rating 5A
Contact Finish Gold
Housing Color Blue
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 5 DD D High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Height 12.6mm
Length 66.9mm
Width 22.2mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
