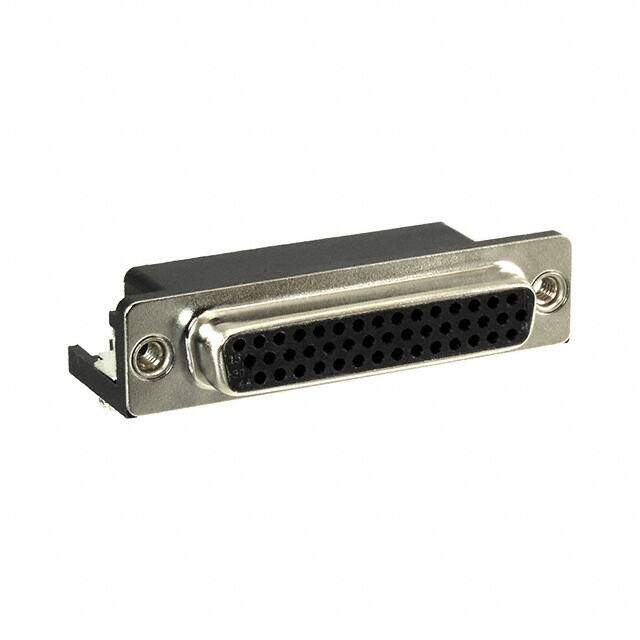

634-044-563-042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Connectors 44P RECPT RA .350 FP
PDF
/
Buying Options
Total Price: USD $6.95
Unit Price: USD $6.952
≥1 USD $6.952
≥10 USD $6.2876
≥100 USD $5.94
≥500 USD $5.79502
≥1000 USD $5.505192
≥3000 USD $4.925738
Inventory: 246
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Width 22.2mm
Length 53mm
Height 12.6mm
Technical
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 3 DB B High Density
Number of Ports 1
Connector Style D-Sub, High Density
Plating Lead, Steel, Tin
Max Current Rating 5A
Flange Feature Housing/Shell (4-40)
Housing Color Blue
Contact Finish Gold
Current Rating 5A
Orientation Right Angle
Pitch 2.29mm
Current Rating (Amps) 3A
Contact Type Signal
Number of Rows 3
Color Black
Number of Positions 44
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 634
Published 2005
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Thermoplastic
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
