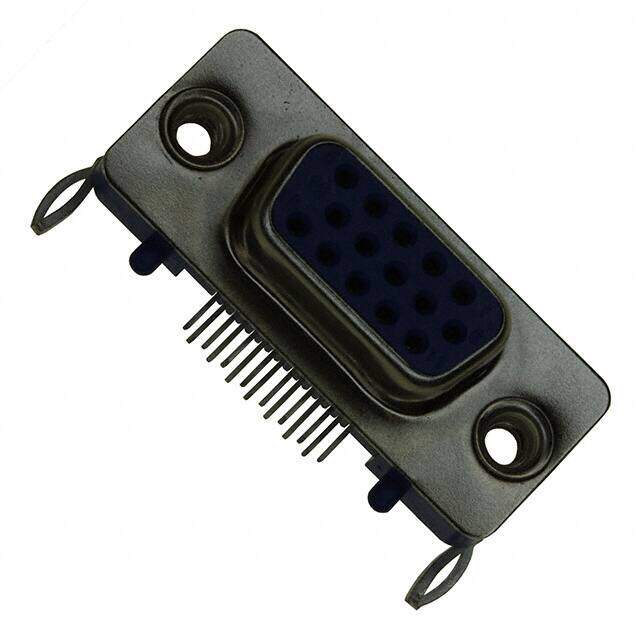

634-015-274-992

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN DSUB HD RCPT 15POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $2.068
≥100 USD $1.979648
≥500 USD $1.935824
≥1000 USD $1.847824
≥3000 USD $1.671824
Inventory: 4230
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash

Technical

Backset Spacing 0.079 (2.00mm)
Shell Size, Connector Layout 1 DE E High Density
Connector Style D-Sub, High Density
Plating Nickel
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Current Rating 5A
Pitch 2.29mm
Current Rating (Amps) 1A
Contact Type Signal
Gender Receptacle
Number of Rows 3
Color Blue
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Board Lock, Shielded
Series 634
Published 2009
Packaging Bulk
Operating Temperature -40°C~230°C

Physical

Shell Material, Finish Steel, Nickel Plated
Body Material Steel
Housing Material Polyester
Dielectric Material Polyamide (PA6T), Nylon 6T
Material Metal
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
