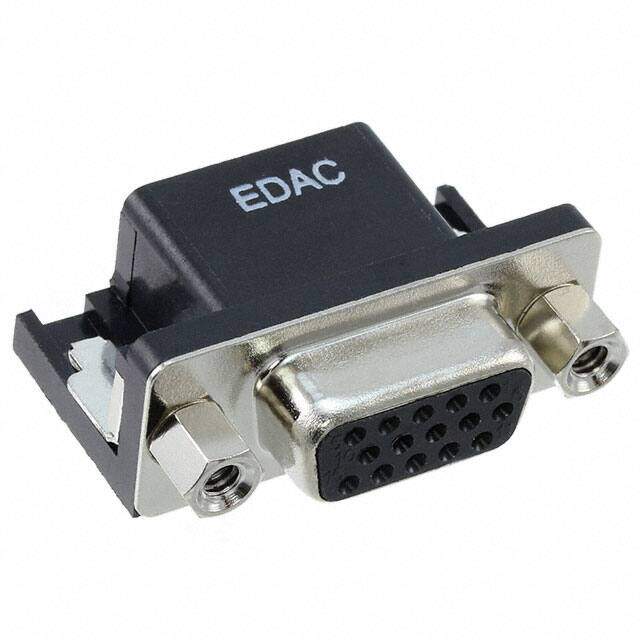

634-015-263-043
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Connectors 15P RECPT RA .350 FP
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.1328
≥1 USD $3.1328
≥10 USD $2.84504
≥100 USD $2.69456
≥500 USD $2.631728
≥1000 USD $2.506416
≥3000 USD $2.193101
Inventory: 119
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 22.2mm
Length 30.8mm
Height 12.5mm
Technical
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 1 DE E High Density
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 3A
Contact Type Signal
Gender Female
Number of Rows 3
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 634
Published 2005
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
