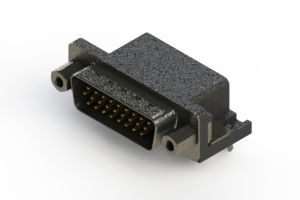

633-026-263-033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB HD PLUG 26POS R/A SLDR
PDF
/
Inventory: 5938
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series 633
Feature Board Lock, Grounding Indents, Shielded
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 26
Color Black
Number of Rows 3
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 2 DA A High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
