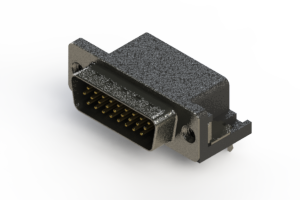

633-026-263-032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB HD PLUG 26POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.50184
≥100 USD $2.369664
≥500 USD $2.3144
≥1000 USD $2.204215
≥3000 USD $1.928705
Inventory: 146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2005
Series 633
Feature Board Lock, Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 26
Color Black
Number of Rows 3
Contact Type Signal
Current Rating 5A
Contact Finish Gold
Housing Color Blue
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub, High Density
Shell Size, Connector Layout 2 DA A High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Height 12.6mm
Length 39.2mm
Width 22.2mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
