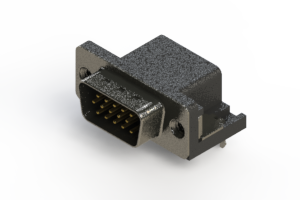

633-015-263-032

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN DSUB HD PLUG 15POS R/A SLDR
PDF
/
Inventory: 9852
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 22.2mm
Length 30.8mm
Height 12.6mm

Technical

Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 1 DE E High Density
Connector Style D-Sub, High Density
Flange Feature Housing/Shell (4-40)
Housing Color Blue
Contact Finish Gold
Current Rating 5A
Contact Type Signal
Number of Rows 3
Color Black
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
Series 633
Published 2005
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 14 Weeks
