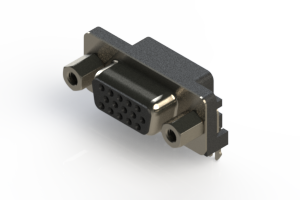

632-015-666-033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB HD RCPT 15POS R/A SLDR
PDF
/
Inventory: 6831
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 14.6mm
Length 30.8mm
Height 12.6mm
Technical
Backset Spacing 0.125 (3.18mm)
Shell Size, Connector Layout 1 DE E High Density
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Finish Gold
Current Rating 5A
Contact Type Signal
Number of Rows 3
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 632
Published 2005
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
