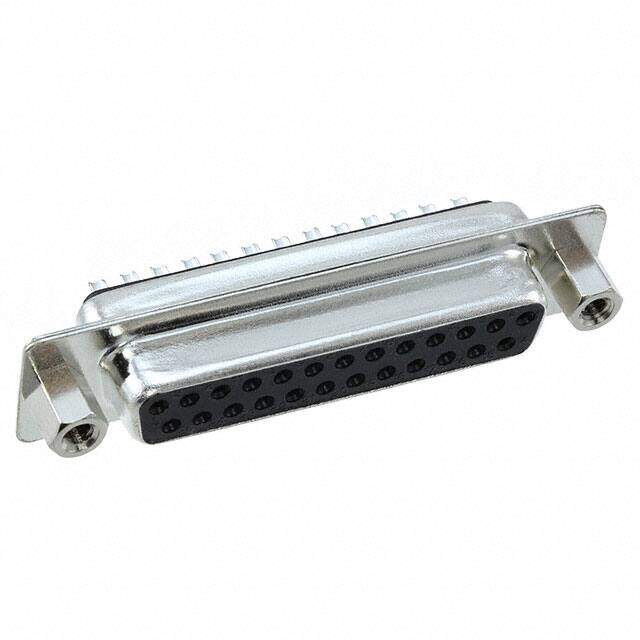

628-025-222-048
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
GLOVE, POLYAMIDE, L/FREE, PU, SIZE 6 - More Details
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $1.8172
≥100 USD $1.739936
≥500 USD $1.701216
≥1000 USD $1.623864
≥3000 USD $1.469178
Inventory: 174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Thermoplastic
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2011
Series 628
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Color Black
Number of Rows 2
Additional Feature STAMPED CNTS, FIXED STANDOFFS
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Pitch 2.76mm
Total Number of Contacts 25
Orientation Straight
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.494 inch
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Body/Shell Style PLUG
Plating Steel
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 3 DB B
Contact Design STAMPED, PREASSEM
Dimensions
Height 13.1mm
Length 53mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
