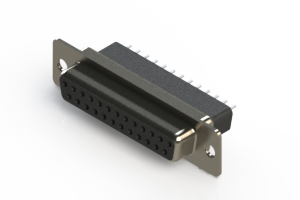

628-025-221-051
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
628 SERIES VERTICAL D-SUB PLUG C
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.4232
≥1 USD $3.4232
≥10 USD $3.10728
≥100 USD $2.94287
≥500 USD $2.874423
≥1000 USD $2.73753
≥3000 USD $2.395307
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.165 inch
Plating Thickness FLASH inch
Technical
Insulator Color BLACK
Mating Contact Row Spacing 0.112 inch
Withdrawl Force-Min .278 N
Insertion Force-Max 2.78 N
Contact Pattern STAGGERED
Contact Finish Termination TIN/LEAD
PCB Contact Row Spacing 2.8448 mm
Dielectric Withstanding Voltage 1000VAC V
Termination Type SOLDER
Body/Shell Style PLUG
Mating Contact Pitch 0.109 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 5A
Body Depth 0.472 inch
Operating Temperature (Min) -55°C
Contact Gender FEMALE
Body Breadth 0.494 inch
Operating Temperature (Max) 125°C
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 2.088 inch
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Terminal Pitch 2.7686mm
Total Number of Contacts 25
Contact Finish - Mating AU ON NI
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature STAMPED CONTACTS
Number of Rows 2
ECCN Code EAR99
Part Status Active
Physical
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Option 1 HOLE .115-.125
Shell Material STEEL
Insulation Material THERMOPLASTIC
Mounting Type BOARD
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 12 Weeks
