628-015-321-056
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

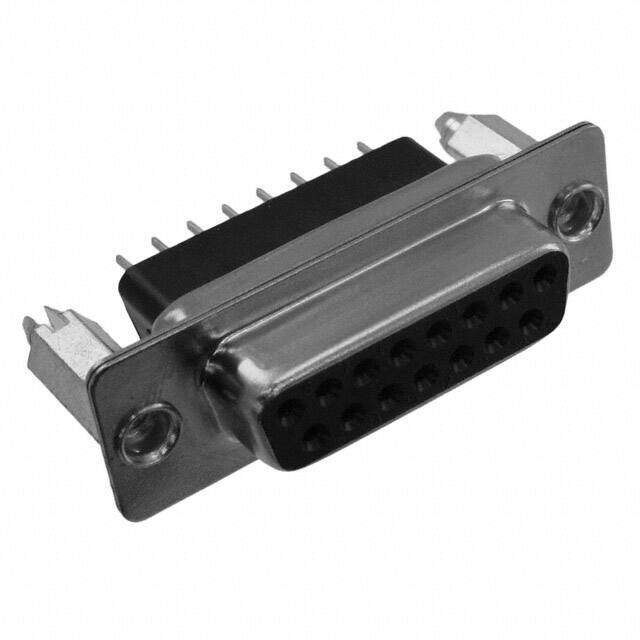

CONN D-SUB RCPT 15P PNL MNT SLDR
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2011
Series 628
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 2
Additional Feature STAMPED CONTACTS
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 15
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.545 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Rated Current (Signal) 5A
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Length - Termination 0.165 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
