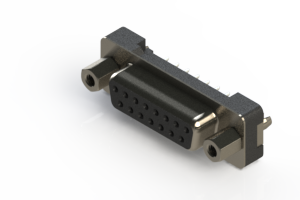

628-015-320-017

EDAC Inc.
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB RCPT 15P PNL MNT SLDR
PDF
/
Inventory: 9585
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length - Termination 0.14 inch
Contact Finish Thickness 15.0μin 0.38μm

Technical

Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Mating Contact Pitch 0.108 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 1.545 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 15
Contact Type Signal
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature EXTENDED BODY
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 628
Published 2010
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Package / Case Metal
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
