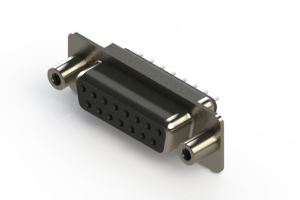

628-015-220-048
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 15P PNL MNT SLDR
PDF
/
Inventory: 2556
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2005
Series 628
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Black
Number of Rows 2
Additional Feature STAMPED CNTS, FIXED STANDOFFS
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 15
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Rated Current (Signal) 5A
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Shell Size, Connector Layout 2 DA A
Dimensions
Height 13.1mm
Length 39.2mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
