628-015-220-042
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

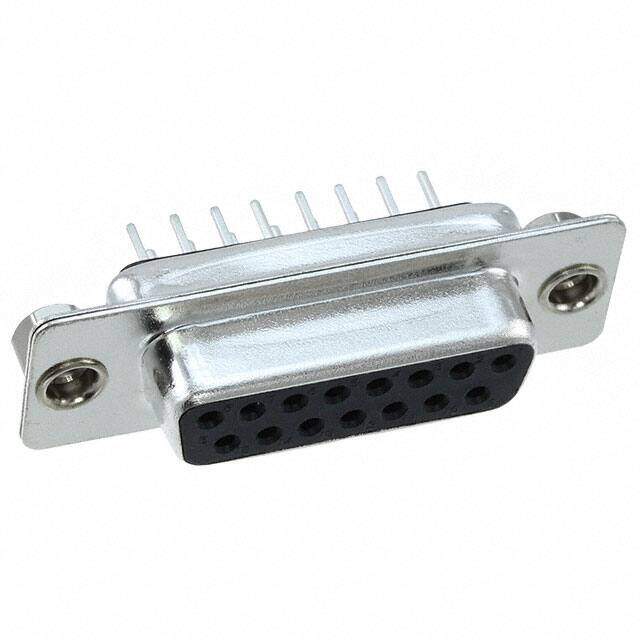

D-Sub Standard Connectors 15P RECPT VERT METAL
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.3584
≥1 USD $2.3584
≥10 USD $2.1384
≥100 USD $2.025408
≥500 USD $1.978416
≥1000 USD $1.884256
≥3000 USD $1.648733
Inventory: 106
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Width 12.6mm
Length 39.2mm
Height 13.1mm
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.108 inch
Flange Feature Housing/Shell (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Empty Shell NO
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature LOW PROFILE
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Shielded
Series 628
Published 2011
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Package / Case Metal
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
