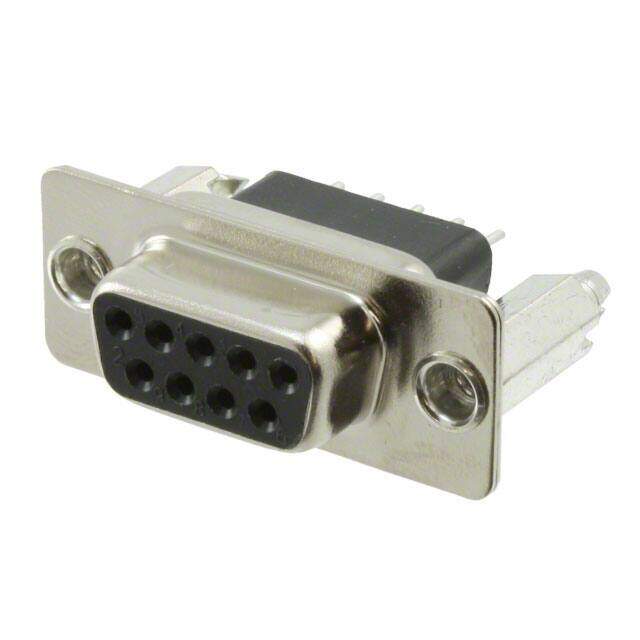

628-009-321-056
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB RCPT 9POS PNL MNT SLDR
PDF
/
Buying Options
Total Price: USD $3.38
Unit Price: USD $3.3792
≥1 USD $3.3792
≥10 USD $3.0668
≥100 USD $2.904704
≥500 USD $2.83712
≥1000 USD $2.701952
≥3000 USD $2.364208
Inventory: 234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2011
Series 628
Feature Board Lock, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Additional Feature STAMPED CONTACTS
Subcategory D Type Connectors
Contact Type Signal
Total Number of Contacts 9
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Rated Current (Signal) 5A
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Plating Thickness 15μin
Length - Termination 0.165 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
