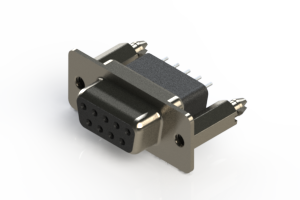

628-009-221-056
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
628 SERIES VERTICAL D-SUB PLUG C
PDF
/
Inventory: 5253
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
Total Number of Contacts 9
Terminal Pitch 2.7432mm
Shell Finish NICKEL
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.214 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Operating Temperature (Max) 125°C
Body Breadth 0.494 inch
Contact Gender FEMALE
Operating Temperature (Min) -55°C
Body Depth 0.472 inch
Rated Current (Signal) 5A
Contact Style RND PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.108 inch
Body/Shell Style PLUG
Termination Type SOLDER
Dielectric Withstanding Voltage 1000VAC V
PCB Contact Row Spacing 2.8448 mm
Contact Pattern STAGGERED
Insertion Force-Max 2.78 N
Withdrawl Force-Min .278 N
Mating Contact Row Spacing 0.112 inch
Insulator Color BLACK
Additional Feature STAMPED CONTACTS
Number of Rows 2
ECCN Code EAR99
Part Status Active
Dimensions
Plating Thickness FLASH inch
Length - Termination 0.165 inch
Physical
Mounting Option 2 THREADED
Mounting Style STRAIGHT
Mounting Option 1 #4-40
Shell Material STEEL
Insulation Material THERMOPLASTIC
Mounting Type BOARD
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status ROHS3 Compliant
