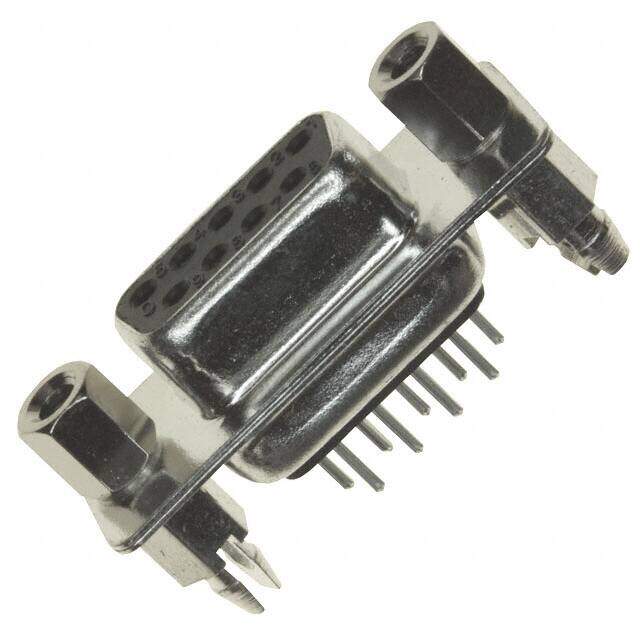

628-009-220-047 image
Favorite
628-009-220-047 image
Favorite

628-009-220-047

EDAC Inc.
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description Conn D-Subminiature RCP 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.5784
≥1 USD $2.5784
≥10 USD $2.3408
≥100 USD $2.216544
≥500 USD $2.165152
≥1000 USD $2.062016
≥3000 USD $1.804282
Inventory: 374
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 13.1mm

Technical

Shell Size, Connector Layout 1 DE E
Number of Ports 1
Connector Style D-Sub
Max Current Rating 5A
Body/Shell Style PLUG
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 5A
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Orientation Straight
Total Number of Contacts 9
Pitch 2.74mm
Contact Type Signal
Subcategory D Type Connectors
Additional Feature STAMPED CONTACTS, STANDOFFS
Gender Female
Number of Rows 2
Color Black
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 628
Published 2008
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Body Material Steel
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Package / Case Metal
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
