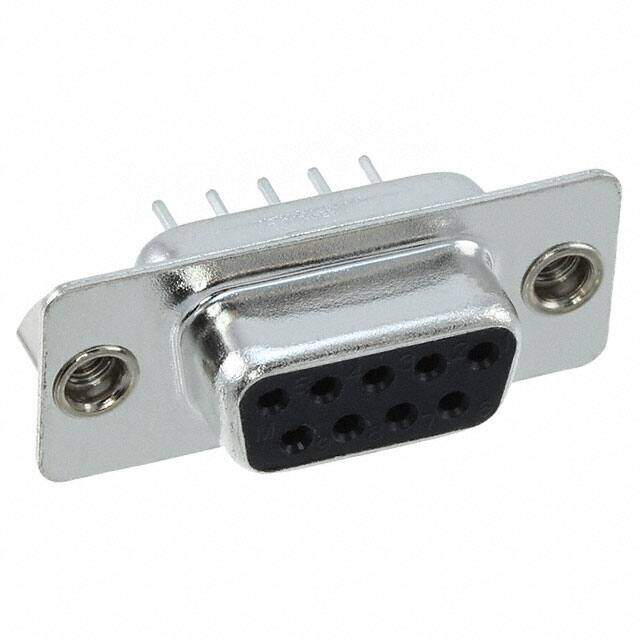

628-009-220-042

EDAC Inc.
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 9P RECPT VERT METAL
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.079167
≥1 USD $2.079167
≥10 USD $1.961484
≥100 USD $1.850446
≥500 USD $1.745709
≥1000 USD $1.646901
Inventory: 3807
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated

Technical

Operating Temperature -55°C~105°C
Packaging Tray
Published 2011
Series 628
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Black
Number of Rows 2
Additional Feature LOW PROFILE
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Rated Current (Signal) 5A
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.108 inch
Flange Feature Housing/Shell (4-40)

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 13.1mm
