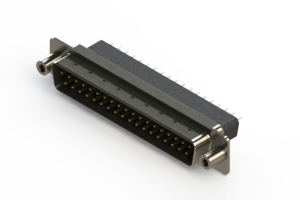

627-037-221-058
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
627 SERIES VERTICAL D-SUB PLUG C
PDF
/
Inventory: 7947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material BRASS
Mounting Type BOARD
Insulation Material THERMOPLASTIC
Shell Material STEEL
Mounting Option 1 #4-40
Mounting Style STRAIGHT
Mounting Option 2 THREADED
Technical
Part Status Active
ECCN Code EAR99
Number of Rows 2
Additional Feature STAMPED CNTS, FIXED STANDOFFS
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating AU ON NI
Total Number of Contacts 37
Terminal Pitch 2.7686mm
Shell Finish NICKEL
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.73 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Operating Temperature (Max) 125°C
Body Breadth 0.494 inch
Contact Gender MALE
Operating Temperature (Min) -55°C
Body Depth 0.472 inch
Rated Current (Signal) 5A
Contact Style RND PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.109 inch
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Dielectric Withstanding Voltage 1000VAC V
PCB Contact Row Spacing 2.8448 mm
Contact Finish Termination TIN/LEAD
Contact Pattern STAGGERED
Insertion Force-Max 2.78 N
Withdrawl Force-Min .278 N
Mating Contact Row Spacing 0.112 inch
Insulator Color BLACK
Dimensions
Plating Thickness FLASH inch
Length - Termination 0.165 inch
Compliance
RoHS Status ROHS3 Compliant
