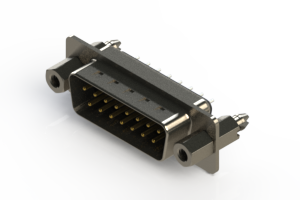

627-015-220-047
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 15P PNL MNT SLDR
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.508
≥1 USD $2.508
≥10 USD $2.28008
≥100 USD $2.159168
≥500 USD $2.109105
≥1000 USD $2.008662
≥3000 USD $1.757615
Inventory: 64
Minimum: 1
-
+
Technical Details
Dimensions
Height 13.1mm
Length 39.2mm
Width 12.6mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.108 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 15
Contact Type Signal
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature STAMPED CONTACTS, STANDOFFS
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
Series 627
Published 2011
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Package / Case Metal
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
