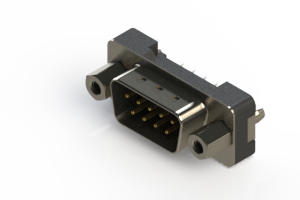

627-009-620-017
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS PNL MNT SLDR
PDF
/
Buying Options
Total Price: USD $4.87
Unit Price: USD $4.8664
≥1 USD $4.8664
≥10 USD $4.41848
≥100 USD $4.184928
≥500 USD $4.0876
≥1000 USD $3.892944
≥3000 USD $3.406339
Inventory: 139
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Width 12.6mm
Length 30.8mm
Height 12.1mm
Technical
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.108 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 9
Contact Type Signal
Subcategory D Type Connectors
Additional Feature EXTENDED BODY
Number of Rows 2
Color Black
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Shielded
Series 627
Published 2005
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
