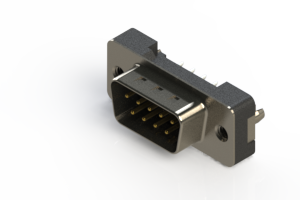

627-009-620-016
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS PNL MNT SLDR
PDF
/
Inventory: 2393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series 627
Feature Board Lock, Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Color Black
Number of Rows 2
Additional Feature EXTENDED BODY
Subcategory D Type Connectors
Contact Type Signal
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
