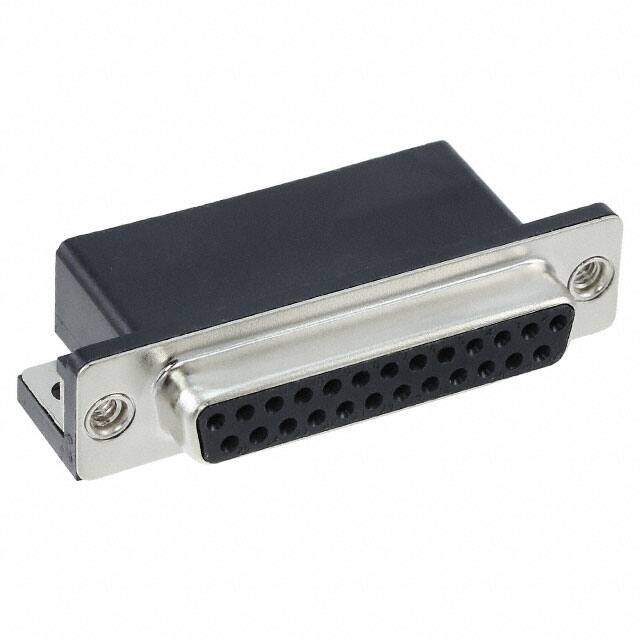

626-025-262-012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 25P RCPT RA .590 FP
PDF
/
Inventory: 9623
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Polyester Thermoplastic
Housing Material Polyester
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2010
Series 626
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Color Black
Number of Rows 2
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Type Signal
Pitch 2.76mm
Total Number of Contacts 25
Orientation Right Angle
Current Rating 5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.494 inch
Body Depth 0.747 inch
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Max Current Rating 5A
Plating Steel
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.590 (14.99mm)
Dimensions
Height 12.6mm
Length 53mm
Width 25.1mm
Contact Finish Thickness Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
